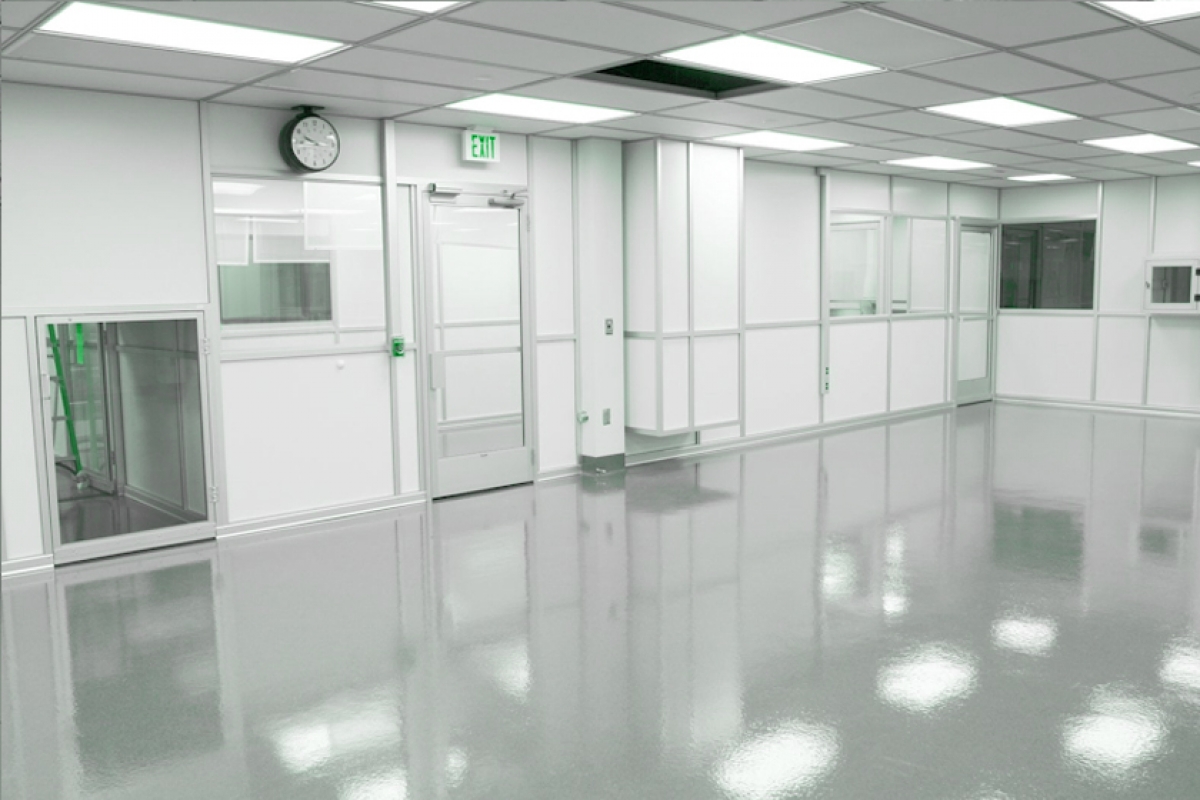

Hardwall Modular Construction
There are two standard types of modular hardwall cleanrooms: recirculating and non-recirculating. Your product and process requirements will determine which type is best-suited to your company’s needs. Click here for information on common industry standards and cleanroom performance requirements.
We offers both recirculating and non-recirculating modular cleanrooms, and will help you decide which option is right for you.
Recirculating Modular Cleanrooms
As the name suggests, a recirculating modular cleanroom recirculates the air within and prevents that air from mixing with outside air—this allow for better control of temperature and humidity. Air is recirculated through HEPA filters, located in the ceiling of the clean room, using air return chambers built into the walls of the clean room. In a recirculating modular cleanroom, less contamination load is put on the HEPA filters because the system is continually recycling previously cleaned air. This helps filters last longer and perform better.
Non-Recirculating Modular Cleanrooms
Also called a “single pass cleanroom,” a non-recirculating modular cleanroom draws in air from above the room through the HEPA filters. The filtered air is blown into the cleanroom, and it exits via either a small gap located below the walls or through adjustable wall grills. With no need for return air ductwork, non-circulating modular clean rooms are less costly than recirculating clean rooms.
Custom Modular Hardwall Clean Room Options
We offers a line of standard hardwall modular cleanrooms, as well as custom hardwall modular cleanrooms that are tailored to your application and performance requirements.
To create the perfect cleanroom for your facility, our modular cleanrooms include a wide variety of customizable features. The overall size and configuration, the location of entry/exit doors and pass-throughs, even the wall material can be customized to meet your unique needs.
Hardwall Modular Cleanroom Installation
Our hardwall modular cleanrooms are designed for fast and easy onsite installation. All components are prefabricated at our factory.
