A Comprehensive Guide to These Essential Environments for High-Precision Manufacturing and Research, Highlighting the Applications, Maintenance and Cleaning Practices
Introduction
Cleanrooms are controlled environments designed to minimize the presence of contaminants, such as dust, airborne microbes, and chemical vapors. They play a crucial role in various industries, including pharmaceuticals, biotechnology, electronics, and aerospace.
This article will explore the fundamentals of cleanrooms, their design principles, components, and applications in different industries. We will also discuss the importance of maintaining cleanroom standards and the various protocols and procedures involved in cleanroom operations.
What are Cleanrooms?

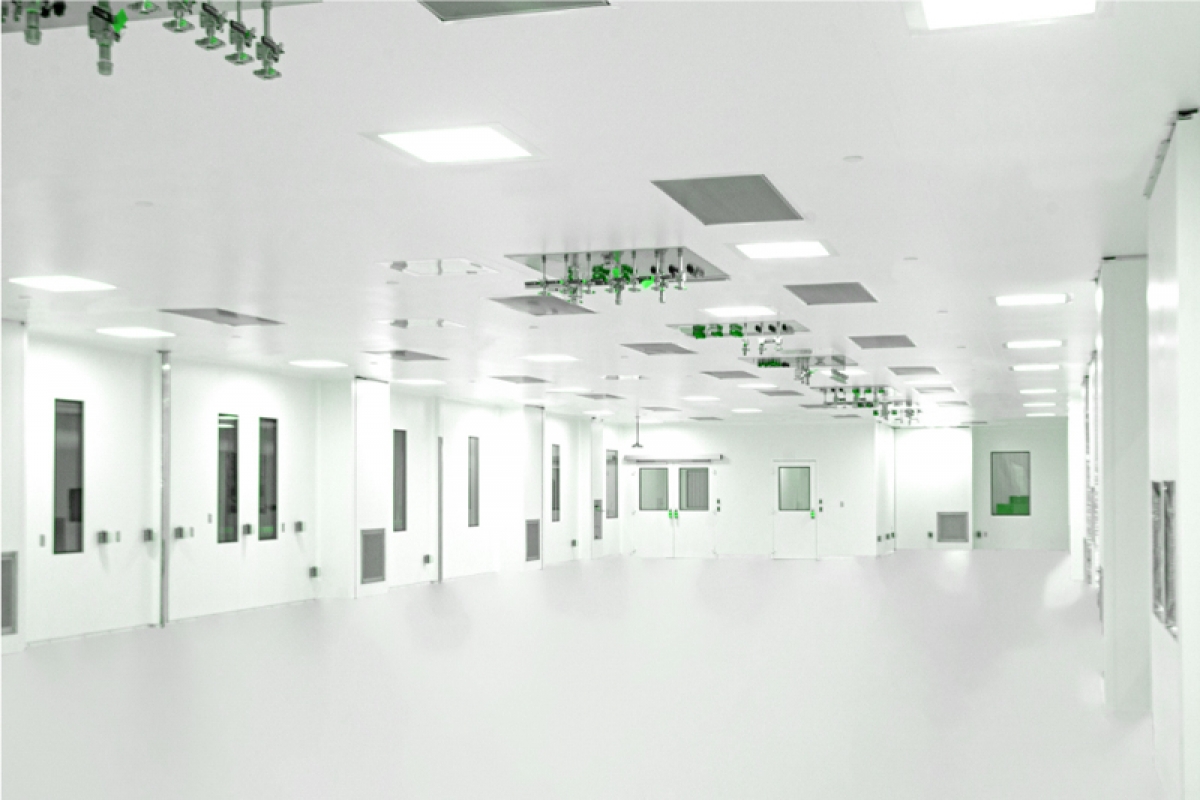

A cleanroom is a specially designed and controlled environment where the concentration of airborne particles is kept to a minimum. The primary purpose of a cleanroom is to prevent contamination of sensitive processes or products, ensuring their quality and safety.
While there are many improvised airborne pathogen purification systems, cleanrooms remain the primary requirement in industries where even the smallest amount of contamination can have significant consequences, such as pharmaceutical manufacturing, semiconductor fabrication, and biotechnology research.
Purpose of Cleanrooms
The purpose of cleanrooms is to control contaminants, which involves regulating various factors such as
Air filtration - The use of HEPA and ULPA filters to remove particles to protect sensitive products in critical areas.
Temperature and Humidity Control - Maintaining a consistent environment for optimal product quality and safety.
Pressure - Maintaining a positive pressure to keep contaminants out, ensuring a safe and sterile environment.
The level of cleanliness required in a cleanroom depends on the specific industry and application. For example, in the pharmaceutical industry, cleanrooms prevent contamination of drugs and medical devices, ensuring their sterility and patient safety. Since cleanliness is also a critical regulatory requirement, it’s appropriately addressed in the process of a medical device design.
In the semiconductor industry, cleanrooms are essential for maintaining the integrity of microelectronic components, as even a single dust particle can cause defects in the semiconductor manufacturing process.
Classifications of Cleanrooms
Cleanrooms are classified based on the number and size of airborne particles allowed per unit volume of air. The International Organization for Standardization (ISO) developed the ISO 14644-1 standard, which defines cleanroom classifications and provides guidelines for measuring and testing cleanroom performance. The ISO 14644-1 standard classifies cleanrooms into nine classes, ranging from ISO Class 1 (the cleanest) to ISO Class 9 (the least clean).
Each ISO class has specific limits for the maximum concentration of particles of various sizes. For example, an ISO Class 5 cleanroom must have no more than 3,520 particles of 0.5 micrometers or larger per cubic meter of air, while an ISO Class 7 cleanroom can have up to 352,000 particles of the same size per cubic meter of air. The classification system helps industries determine the appropriate level of cleanliness required for their specific applications and processes.
In addition to the ISO standard, other classification systems exist, such as the United States Federal Standard 209E (FS 209E), which was widely used before the adoption of ISO 14644-1. The FS 209E standard classifies cleanrooms into six classes, ranging from Class 1 (the cleanest) to Class 100,000 (the least clean). Although the FS 209E standard has been officially replaced by ISO 14644-1, it is still used as a reference in some industries and regions.
The ISO 14644-1 is one of the most important standards in the modern industries. Therefore, it’s implemented in Industry 4.0. as it provides a framework for ensuring the cleanliness of manufacturing environments.
The cleanroom classifications help design, construct, and maintain cleanrooms that meet the specific requirements of various industries and applications. Proper classification ensures that cleanrooms provide the necessary level of cleanliness and contamination control, ultimately contributing to the quality and safety of products and processes.
 |
 |
 |
 |
 |
 |
 |
 |
 |
